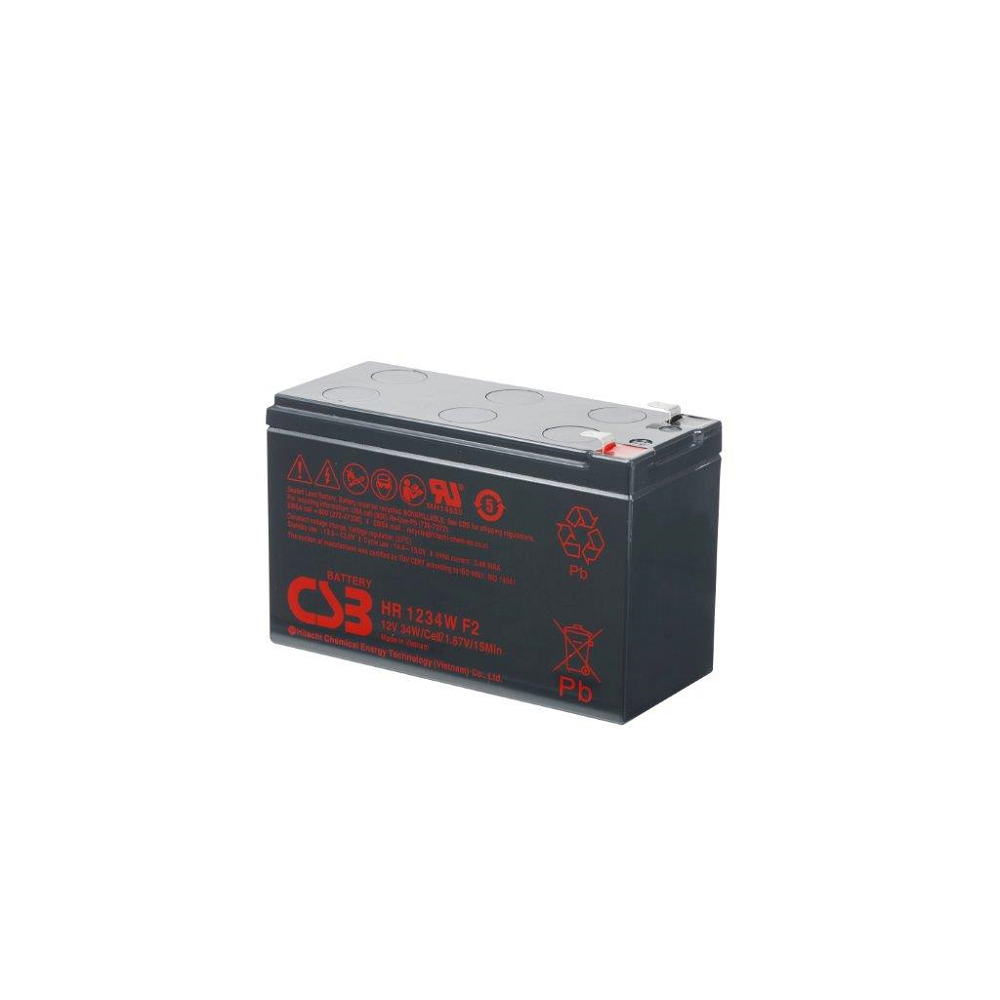

Batería CSB 12V 9Ah HR1234W

Especificaciones
Cells Per Unit: 6
Voltage Per Unit: 12 V
Capacity: 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)
Weight Approx.: 2.50kg. (5.51lbs.)
Maximum Discharge current: 100/130A (5sec.)
Internal Resistance Approx.: Approx. 19mΩ
Operating Temperature Range: Discharge: -15℃~50℃(5°F~122°F)
Charge: -15℃~40℃(5°F~104°F)
Storage: -15℃~40℃(5°F~104°F)
Nominal Operating Temperature Range: 25°C ± 3°C (77°F ± 5°F)
Float charging voltage: 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit: 3.4A
Equalization and Cycle Service: 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge: It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
Terminal: F2-Faston Tab250
Container Material: ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
